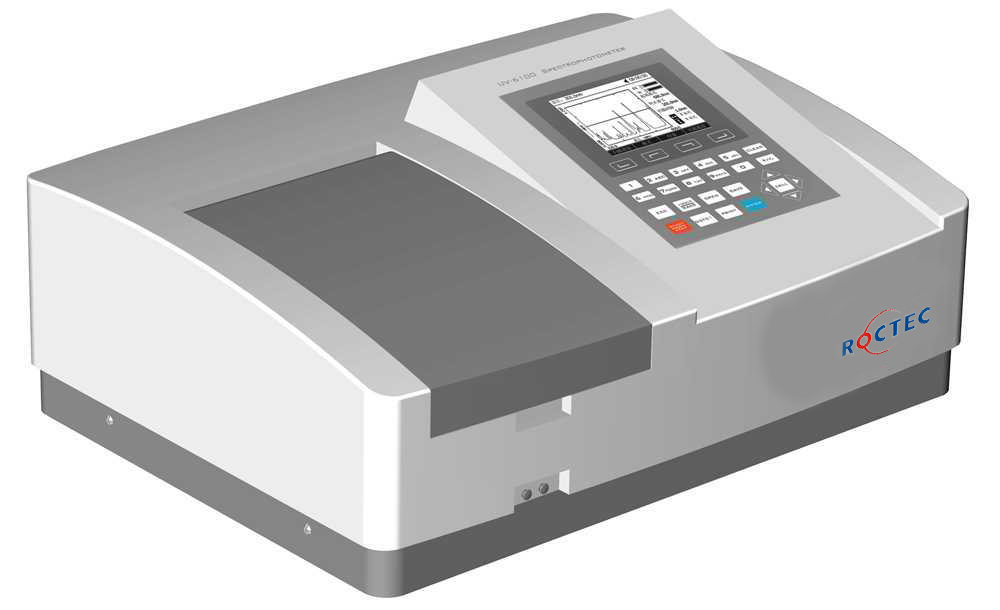

UV Spectrophotometer Basic Technical Data
|
MODEL |
UV6100S(PCS) |
|
Wavelength coverage |
190~1100nm |
|
Spectral bandwidth |
0.5/1/2/4nm Adjustable |
|
Optical System |
Double Beam,Grating1200lines/mm |
|
Wavelength Accuracy |
±0.3nm |
|
Wavelength Repeatability |
≤0.2nm |
|
Scan Speed |
Hi,MED,LOW,MAX.3000nm/min |
|
Photometric Accuracy |
≤±0.3%T or ±0.002A@1A |
|
Photometric Range |
-0.3-3A, 0-200%T |
|
Stray Light |
≤0.05%T@220nm,360nm |
|
Stability |
±0.001A/h(500nm after preheating) |
|
Display |
5 inches LCD screen(320*240Dots) |
|
Baseline Flatness |
±0.001A |
|
Standard Cell Holder |
Standard 10mm single cell holder(2pcs) |
|
Light Source |
Tungsten & Deuterium lamp(pre-aligned) |
|
Output |
USB Port & Parallel port(printer) |
|
Power Requirement |
AC 220V/50Hz or AC110V/60Hz |
|
Dimension |
600×450×200mm |
|
Weight |
22kg |
